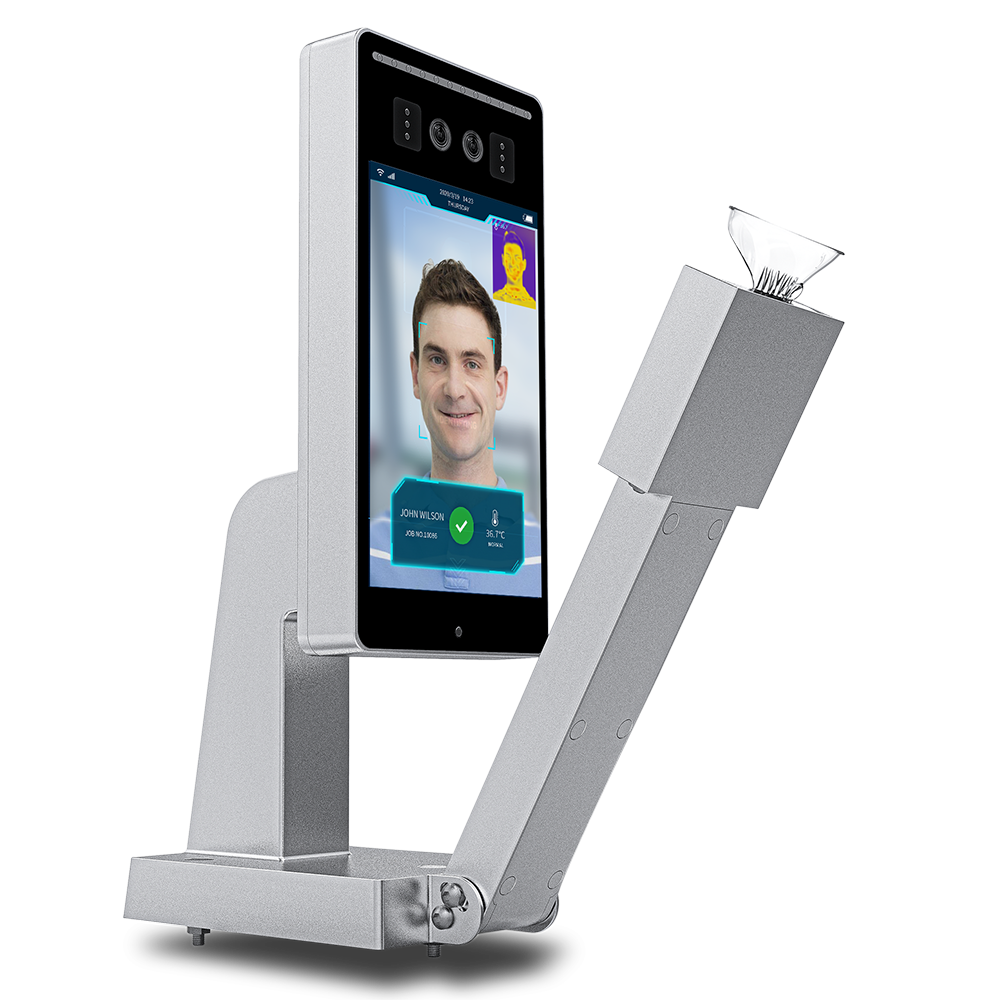

Helios

Installation Venues
- Construction site
- logistics company
- hospital
- school/office
- car park
- airline

Application
- attendance taking system
- access control
- surveillance
- home arrest program

Sensor	Alcohol Testing: Fuel Cell Body Temperature Measurement: IR Temperature Sensor (optional)
Working Temperature	-10°C to 50°C
Storage Temperature	-20°C to 50°C
Storage Humidity	20% to 95%
Size	140 x 195 x 400mm
Weight	2.8kg
Memory	20,000 test records 20,000 registered faces
Camera	Wide Angle HD Camera, 1 Mega Pixel with visible light and infrared
Response Time	5 seconds
Recovery Time	30 seconds after a positive test
Sample Time	4 seconds of continuous blow
Sampling System	Automatically takes a deep lung sample
Power	Input: AC 100-240V 50-60Hz 0.8A Output: DC 12V 3A
Units of Measure	BrAC: mg/L, or other units BAC: grm%, mg/mL, mg/100mL, or other units
Detection Range	0.00% BAC to 0.40% BAC
Accuracy	0 - 0.10% BrAC ±5% 0.10 - 0.15% BrAC ±8% >0.15%: ±10%
Calibration	Replaceable alcohol testing module, no need for on-site calibration
Connection Type	USB 2.0, support USB interface expansion
Network	WiFi, 4G (optional), Ethernet
Extension Port	1 digital signal, can connect with electric lock and access gate, can choose wiegand output, RS232 or RS485 (either one)
